Data sheet
90°-elbow,UN 1-1/16"-12 AG (JIC), Zinc plated steel
{{ $t('shop.all.artikelnummer') }}:
WA 11/16 JIC

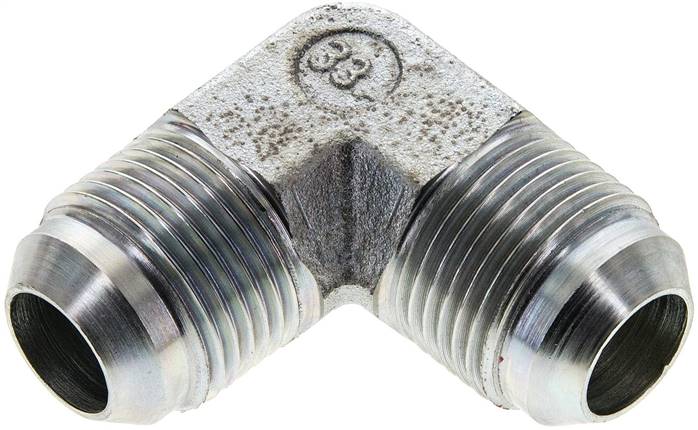

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Zinc plated steel |
| Thread | UN 1-1/16"-12 |
| PN* [bar] | 350 |
Further information:
| {{ $t('shop.all.gewicht') }} | 230 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571736279 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73079910 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
Drawing:
Zeichnung: Winkel-Verschraubung 90° mit JIC (außen)
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number WA 11/16 JIC.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
