Data sheet
Adjustab. Screwed connect. 60° cone.(G 1/8")-G 1/4"(male thread)
{{ $t('shop.all.artikelnummer') }}:
EV 1814 HD

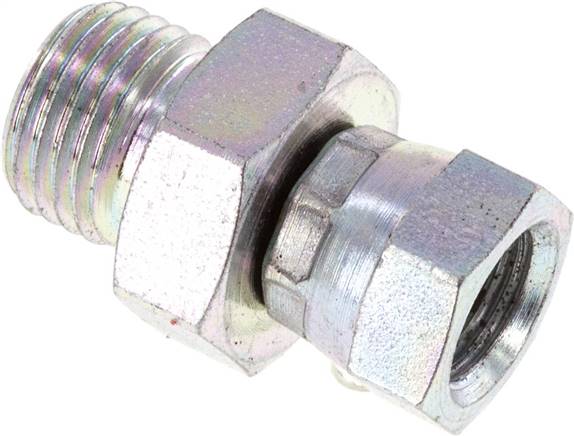

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Zinc plated steel |
| Thread internal | G 1/8" |
| Screw-in thread | G 1/4" |
| PN* [bar] | 350 |
Further information:
| {{ $t('shop.all.gewicht') }} | 30 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571286132 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73079290 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
Drawing:
Drawing: Screw-in fitting with G-thread (60° universal sealing cone, female)
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number EV 1814 HD.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
