Data sheet
Coupling socket (NW19) G 1"(male thread), Nickel-plated brass
{{ $t('shop.all.artikelnummer') }}:
KDG 10 NW19 MSV

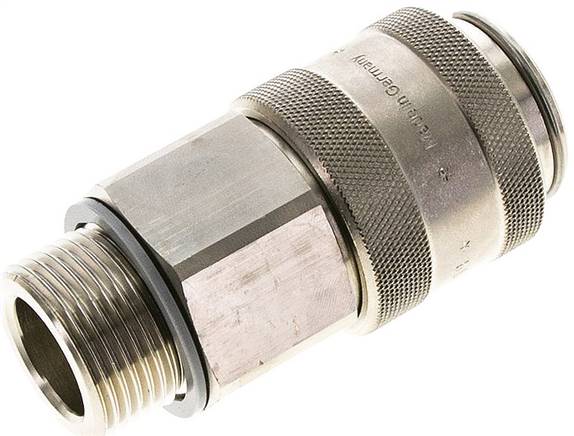

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: Brass or nickel-plated brass, seal: NBR
Temperature range:
-20 to +100 °C
Operating pressure:
-0,4 to 35 bar
Flow*:
8000 l/min (option: -BA: 6400 l/min)
Advantages:
•Coupling sockets can be used both with plugs that do not have shut-off as well as those that do -BA
Compatible with**:
Rectus (39), Hansen (7000-1")
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Nickel-plated brass |
| Thread external | G 1" |
| Can be used for plug shut-off on both sides | yes |
Further information:
| {{ $t('shop.all.gewicht') }} | 650 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571393809 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812090 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number KDG 10 NW19 MSV.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
