Data sheet

DIN/EN Kamlock coupling (D/DF) G 4"(Female thread), Stainless steel (1.4408)
{{ $t('shop.all.artikelnummer') }}:
KLDGI 40 ES-DIN

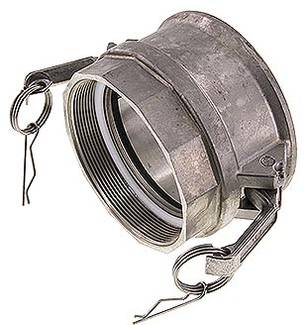

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: stainless steel 1.4408, seal: NBR, handle, ring: stainless steel (female thread is equipped with PTFE flat seals)
Temperature range:
-10 to +80 °C
Advantages:
•Full throughway,
•little pressure loss,
•also suitable for solids, since there are no internal valves,
•compatible with plugs / sockets according to MIL-C-27487
Information:
The EN couplings only differ with regard to the version of the female thread and hose connection for standard couplings, they are completely compatible with standard couplings in accordance with ML-C-27487
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Version Kamlock coupling
Material Stainless steel (1.4408)
Thread G 4"
DN [mm] 90 (4")
for plug diameter [mm] 119,5
PN [bar] 7
Further information:
{{ $t('shop.all.gewicht') }} 1,5 kg / pcs
{{ $t('shop.all.gtin') }} 4050571433574
{{ $t('shop.display.artikel.zollwarennummer') }} 73071990
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
Drawing:
Drawing: Sizing for camlock coupling sockets
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number KLDGI 40 ES-DIN.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
