Data sheet
Flow meter/monitor, 5 to 15 l/min, Nickel-plated brass
{{ $t('shop.all.artikelnummer') }}:
DMWV 10-15 MSV

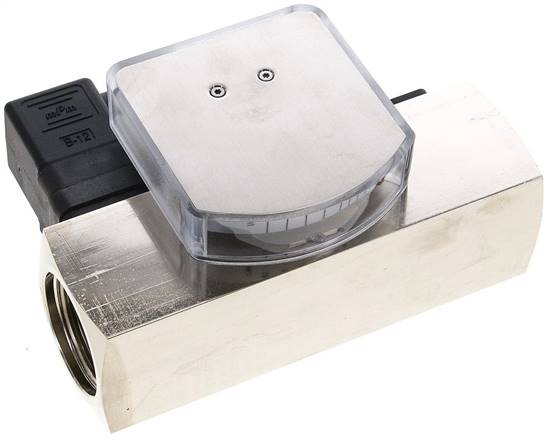

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Application:
Flow monitors monitor a flow quantity that can be set. If this is exceeded or undershot, a contact gets actuated. A voltage supply is not necessary because of the potential-free reed contacts. The additional scale allows reading the momentary flow directly on the instrument.
Temperature range:
-20 to +120 °C, Environment: max. +80 °C
Protection class:
IP 53
Measurement principle:
Spring loaded float
Installation position:
arbitrarily (preferred from bottom to top)
Direction of flow:
only in one direction
Electrical connection:
Right-angle connector installation size 3, 3-pole (DIN 43650 / EN 175301-803 A) (Flat pin)
Switch type:
Closer (NO)
Switching capacity:
250 V AC, 100 VA, max. 5 A / 250 V DC, 100 W, max. 5 A
Media:
Oils and other fluids with 30 - 600 cSt viscosity (0.1 - 0.8 l/min: max. 400 cSt)
Advantages:
•Scale and switching point do not have to be adjusted according to the medium and pressure.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Nickel-plated brass |
| Switching range [l/min] | 5 - 15 |
| Display range [l/min] | 5 - 15 |
| Thread | G 1" |
| PN [bar] | 250 |
Further information:
| {{ $t('shop.all.gewicht') }} | 1,3 kg / pcs |
| {{ $t('shop.all.gtin') }} | 4050571253479 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 90261081 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number DMWV 10-15 MSV.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
