Data sheet
Safety Kamlock end cap (DC) 2", SS
{{ $t('shop.all.artikelnummer') }}:
KLDV 20 ES-S

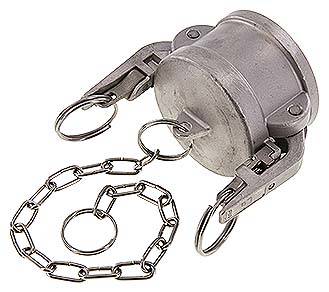

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Function:
A safety rapid locking mechanism integrated in the hand levers locks the coupling in the coupled state and this is fully automatic. The coupling can only be opened by manually unlocking the safety lever (2-1/2" and 6" with unlocking pins). All quick action chucks(conforming to the MIL-C-27487 standard) can be used as plugs.
Materials:
Body: stainless steel 1.4408, seal: NBR, handle, ring and chain: Stainless steel
Temperature range:
-10 to +80 °C
Advantages:
•coupling is automatically secured in the coupled position,
•safety pins cannot be lost,
•full throughway,
• low pressure loss,
•also suitable for solids as there are no internal valves,
•dimensions worldwide standardised in accordance with MIL-C-27487
•safety pins cannot be lost,
•full throughway,
• low pressure loss,
•also suitable for solids as there are no internal valves,
•dimensions worldwide standardised in accordance with MIL-C-27487
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Stainless steel (1.4408) |
| size | 2" |
| DN [mm] | 50 (2") |
| for plug diameter [mm] | 63,0 |
| PN [bar] | 16 |
Further information:
| {{ $t('shop.all.gewicht') }} | 700 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571433772 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73071990 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
Drawing:
Drawing: Sizing for camlock coupling sockets
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number KLDV 20 ES-S.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
