Data sheet
T piece,UNF 7/8"-14 AG (JIC), Zinc plated steel
Item number:
TA 7/8 JIC

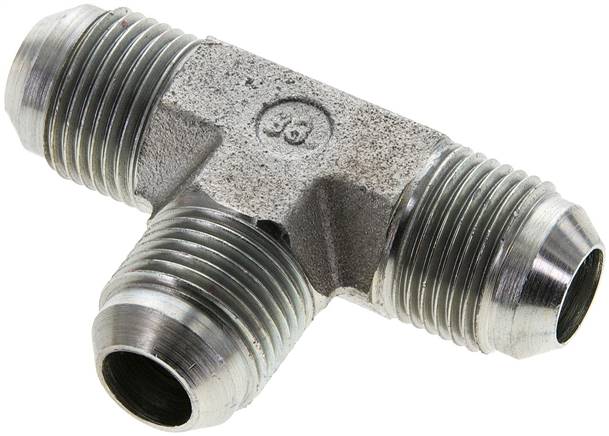

Example illustration
Properties
| Material | Zinc plated steel |
| Thread | UNF 7/8"-14 |
| PN* [bar] | 210 |
Further information:
| Weight | 185 g / pcs |
| GTIN | 4050571688967 |
| Customs duty number | 73079910 |
| RoHS compliant | Yes |
Drawing:
Zeichnung: T-Verschraubung mit JIC-Gewinde (außen)
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number TA 7/8 JIC.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
As of: 29.04.2025
