Data sheet
ES flat face coupling ISO 16028, Plug Size.1, G 1/4"
{{ $t('shop.all.artikelnummer') }}:
FFS 14 ES

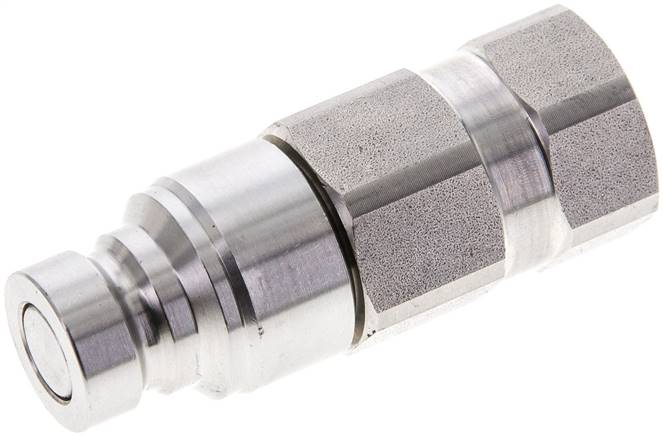

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
1.4401, spring: 1.4319, seal: FKM, support ring: PTFE
Temperature range:
-25 to +200 °C
Advantages:
•No dirt can enter, because the clutch can be easily wiped clean on the smooth surface "flat face",
•Axial forces can be well absorbed by the design of this clutch, particularly suitable for use on hydraulic hoses,
•Drip-free disconnection,
•Single-handed operation,
•Safety lock.
•Axial forces can be well absorbed by the design of this clutch, particularly suitable for use on hydraulic hoses,
•Drip-free disconnection,
•Single-handed operation,
•Safety lock.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | Plug |
| Thread internal | G 1/4" |
| A [mm] | 16,2 |
| B [mm] | 28 |
| DN (ISO) [mm] | 6,3 |
| size | 1 |
| PN [bar] | 250 |
Further information:
| {{ $t('shop.all.gewicht') }} | 120 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571296742 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812010 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number FFS 14 ES.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
