Data sheet
Guillemin coupling, nozzle 80 mm, Stainless steel, with lock
{{ $t('shop.all.artikelnummer') }}:
GMKS 80 V ES

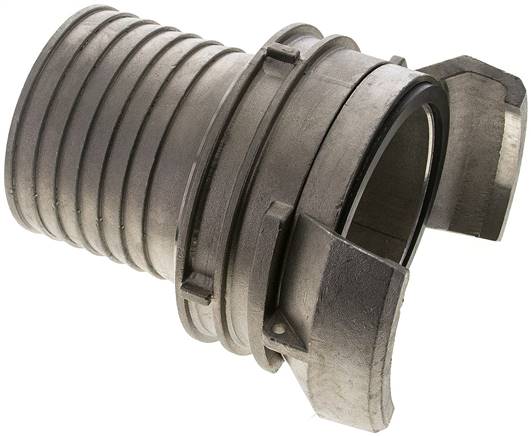

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Function:
With the symmetric Guillemin couplings, connection is achieved through intermeshing of 4 upright claws. In mobile systems, generally, a coupling that is equipped with an adjustable clamping ring (locking) is used, which locks the claws upon twisting. In order for the connection to be set up, at least one of the coupling halves must be equipped with a lock. Only the coupling with locking is equipped with a soft seal.
Suitable:
Tankers, silos, industry and agriculture (mostly in France and BeNeLux)
Materials:
Seal: NBR, if required, chain: stainless steel (type Aluminium: zinc-plated steel)
Temperature range:
-10°C to +80°C
Operating pressure:
16 bar
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Stainless steel |
| Version | with lock |
| size | 3" (sealing surface 101 mm) |
| Hose diameter (inner) [mm] | 80 |
Further information:
| {{ $t('shop.all.gewicht') }} | 1,8 kg / pcs |
| {{ $t('shop.all.gtin') }} | 4050571328399 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73071990 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number GMKS 80 V ES.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
