Data sheet

PTFE/FKM replacement seal f. Kamlock coupling DN25 (1")
{{ $t('shop.all.artikelnummer') }}:
KLOR 10 VPO

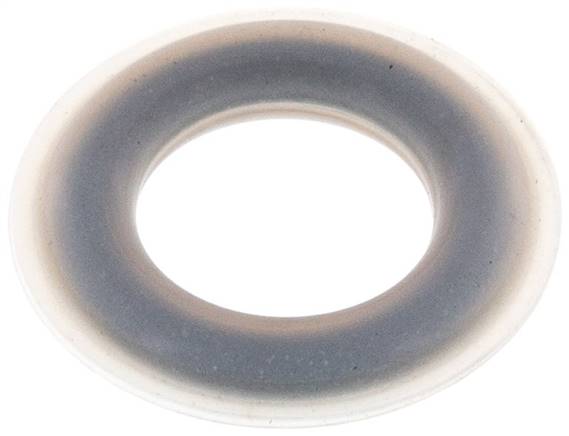

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
O-ring: FKM, covering: PTFE (completely closed, FDA 21 CFR 177.1550)
Temperature range:
-20 to +200 °C
Advantages:
•No touching materials with elastomer cores as a result of the seamless coating,
•easy installation of the seal due to the flexible PTFE centring ring,
•universal chemical resistance (as opposed to welded FEP-covered seals),
•low friction coefficient (6 x lower than FEP / PFA)
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Outer diameter (approx.) [mm] 40
DN [mm] 25 (1")
Further information:
{{ $t('shop.all.gewicht') }} 6,7 g / pcs
{{ $t('shop.all.gtin') }} 4050571434175
{{ $t('shop.display.artikel.zollwarennummer') }} 40169300
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number KLOR 10 VPO.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
