Data sheet
Fixing clamps for T-groove cylinder switch (Mickey-Mouse)
{{ $t('shop.all.artikelnummer') }}:
ZSAB1 32/40

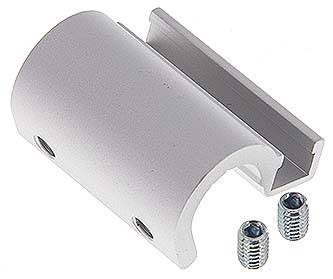

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Anodized aluminum
Suitable:
For fastening cylinder switches type A, B or D on profile pipe cylinders with Mickey-Mouse profile
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| for piston diameter [mm] | (32 - 40) |
| for profile thickness S [mm] | 8 - 10 |
Further information:
| {{ $t('shop.all.gewicht') }} | 11 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571816872 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84129080 |
Figure
Drawing:
Drawing: Fastening clamp for Mickey Mouse profile
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number ZSAB1 32/40.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
