Data sheet

Hydraulic cylinder, Ø 50/30, stroke 500, with transverse bore
Item number:
HDQS 50/30-500

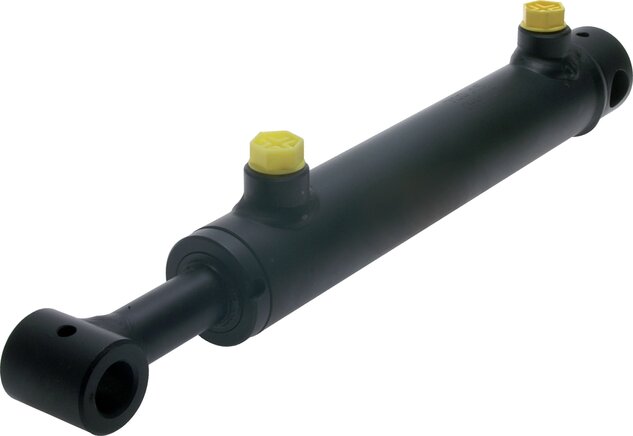

Example illustration
Item description
Materials:
Cylinder tube: St 52.3, piston rod: hard chromium plated steel, seals: polyurethane
Temperature range:
-30 to +90 °C
Operating pressure:
25 to 200 bar
Stroke speed:
Max. 0.5 m/s
Media:
Hydraulic oils on the basis of mineral oil
Properties
Pis­ton di­am­e­ter B [mm] 50
Rod di­am­e­ter A [mm] 30
Stroke [mm] 500
E [mm] 700
C [mm] 22
D [mm] 25,25
F [mm] 45
G [mm] 60
H [mm] 85
I [mm] 40
J [mm] 42
K [mm] 43
L [mm] 15
M G 3/8"
Further information:
Weight 9 kg / pcs
GTIN 4050571357528
Customs duty number 84122120
Drawing:

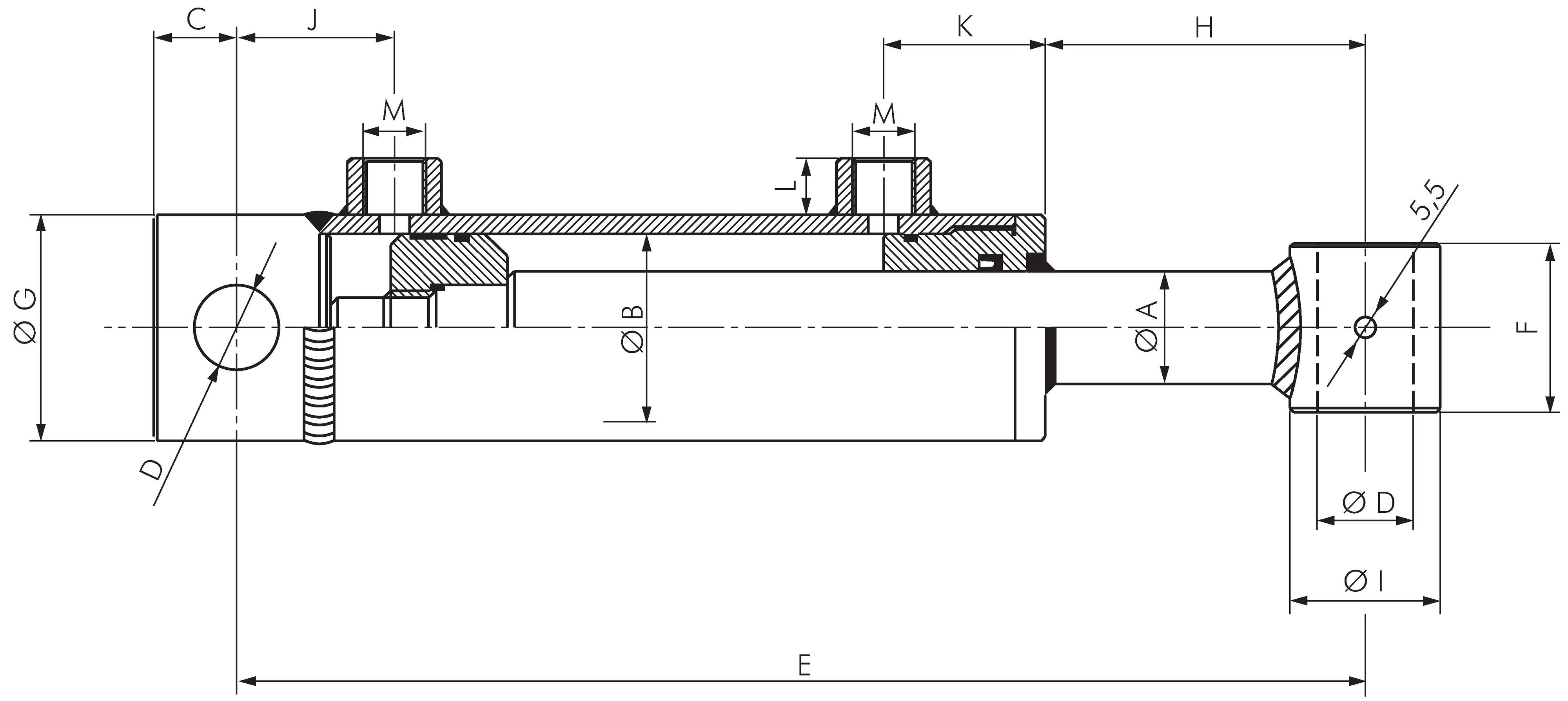

Drawing: Hydraulic cylinder with swivel head, double-acting
Drawing: Compressive force diagram
Drawing: Tractive force diagram
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number HDQS 50/30-500.
