Data sheet

ACE shock absorber, M 12x1, adjustable, stroke 10,2 mm
{{ $t('shop.all.artikelnummer') }}:
MA 35 EUM

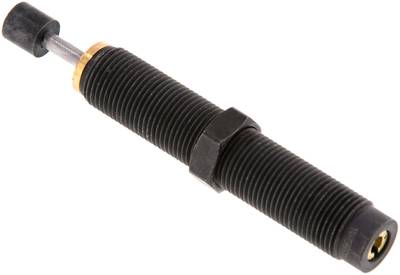

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
shock absorber body and accessory: Steel bronzing, piston rod: hardened, rust-free steel
Temperature range:
0 to +66 °C
Stroke speed:
0,15 to 4,5 m/s
Fixed limit stop:
integrated
Information:
Exceeding W4 (max. energy consumed per hour expressed in Nm/h) is possible in the case of temporary switch-off, or when the shock absorber is cooled with the cylinder exhaust air (take note of the approved heating).
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Thread B M 12x1
Stroke [mm] 10,2
max. Energy consumption per stroke (W3) [Nm] 4
max. Energy consumption per hour (W4) [Nm] 6000
effective mass (me) adjustable [KGM] 6 - 57
Spring force [N] 5 - 11
A [mm] 5,0
D [mm] 65,7
E [mm] 5
G [mm] 3,2
I [mm] 18,2
J [mm] 3,0
K [mm] 7,7
SW2 [mm] 14
Max. axial deviation* [°] 2
clamping flange MB 12
Stop sleeve AH 12
Side load adapter** BV 12
Locking nut KM 12
Further information:
{{ $t('shop.all.gewicht') }} 42 g / pcs
{{ $t('shop.all.gtin') }} 4050571479381
{{ $t('shop.display.artikel.zollwarennummer') }} 84879059
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
{{ $t('shop.all.hersteller') }} ACE
Figure
Drawing:
Drawing: Adjustable shock absorber
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number MA 35 EUM.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
