Data sheet

Straight push in fitting 1/2" (12,7 mm)x1/2" (12,7 mm), IQS-Inch
{{ $t('shop.all.artikelnummer') }}:
IQSG 1/2

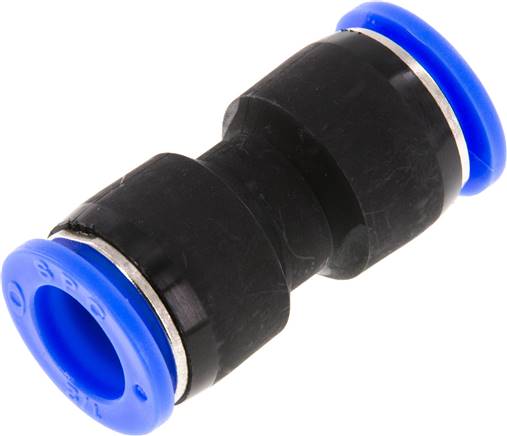

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: nickel-plated brass / PBT, seal: NBR, holding claws: stainless steel, cartridge: Zinc-plated ZnDC (only silicone-free seals and lubricants are used during assembly)
Temperature range:
0 to +60 °C
Operating pressure:
-0,95 to 10 bar
Media:
oiled and unoiled compressed air, neutral gases and water (may be used only after we approve the performance specifications)
{{ $t('shop.display.artikel.eigenschaften_headline') }}
D [mm] 1/2" (12,7 mm)
D1 [mm] 1/2" (12,7 mm)
Further information:
{{ $t('shop.all.gewicht') }} 20 g / pcs
{{ $t('shop.all.gtin') }} 4050571372644
{{ $t('shop.display.artikel.zollwarennummer') }} 39174000
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
{{ $t('shop.all.hersteller') }} Sang-A
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number IQSG 1/2.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
