Data sheet
Thread extension G 1-1/4"-33mm, PVDF
{{ $t('shop.all.artikelnummer') }}:
RN 114114 PVDF

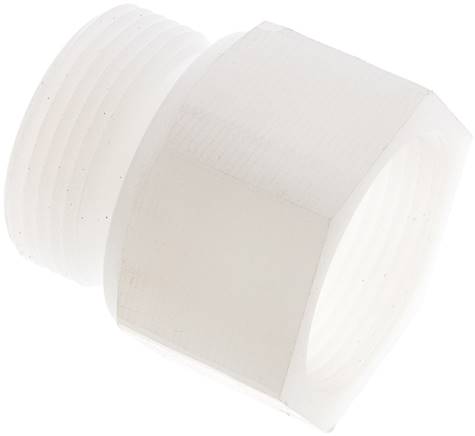

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Polypropylene (FDA-approved) or PVDF (FDA-approved)
Temperature range:
Polypropylene: 0°C to +80°C, PVDF: -20°C to +120°C
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | PVDF |
| Thread external | G 1-1/4" |
| Thread internal | G 1-1/4" |
| L [mm] | 33 |
| Spanner width [mm] | 50 |
Further information:
| {{ $t('shop.all.gewicht') }} | 75 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571591946 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 39174000 |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number RN 114114 PVDF.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
