Data sheet

Cartridge 4mm push in fitting, Nickel-plated brass
{{ $t('shop.all.artikelnummer') }}:
IQSE 40 MSV

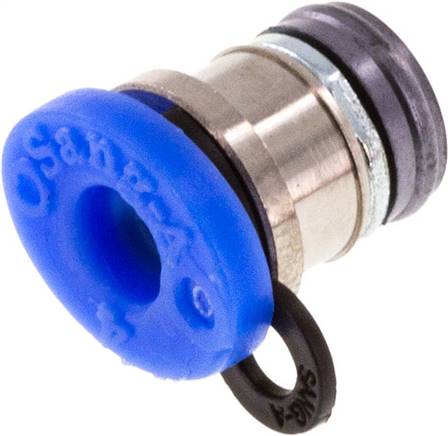

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: nickel-plated brass, sleeve: PBT, seal: NBR, holding claws: Stainless steel
Temperature range:
-20 to +60 °C
Operating pressure:
-0,95 to 10 bar
Media:
Compressed air, neutral gases
Advantages:
•extremely small dimensions,
•no thread spindle required,
•mechanical installation possible,
•cartridge consists of just one part
Work steps:
•manufacture of step holes using a step drill or injection moulding,
•pressing the cartridge in,
•lateral removal of the installation guard
Scope of delivery:
Cartridges with the installation guard (safety rings IQSES ...) are assembled completely and are ready for use.
Warning:
Dimensions are for POM material. Use in metal bodies only possible after carrying out trials.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Material Nickel-plated brass
D [mm] 4
A [mm] 3
B (+ 0,1/0) [mm] 4,2
C (0/-0,05) [mm] 8,0
D1 (+ 0,1/0) [mm] 7,8
E (+ 0,1/0) [mm] 3,5
F [mm] 4,7
G [mm] 11
X [mm] 10
Y [mm] 12
Further information:
{{ $t('shop.all.gewicht') }} 2,5 g / pcs
{{ $t('shop.all.gtin') }} 4050571372316
{{ $t('shop.display.artikel.zollwarennummer') }} 74122000
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
{{ $t('shop.all.hersteller') }} Sang-A
Figure
Drawing:
Drawing: Press-fit cartridge with assembly lock
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number IQSE 40 MSV.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
