Data sheet
bulkhead screw connection M 5-G 1/8", Nickel-plated brass
{{ $t('shop.all.artikelnummer') }}:
SV 50 MSV

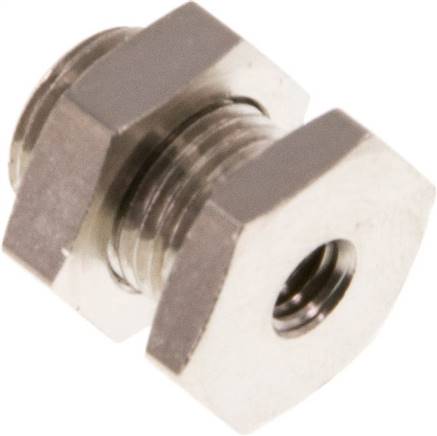

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Nickel-plated brass |
| Thread internal | M 5 |
| Thread external | G 1/8" |
| Bulkhead thread A | G 1/8" |
| Emax [mm] | 8 |
| PN [bar] | 16 |
Further information:
| {{ $t('shop.all.gewicht') }} | 12 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571674533 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 74122000 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
| {{ $t('shop.all.hersteller') }} | EMC |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number SV 50 MSV.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
