Data sheet

Round steel U-bolt clamps, M 10, 30 to 33,7mm, 1.4301
{{ $t('shop.all.artikelnummer') }}:
RSB 34 ES

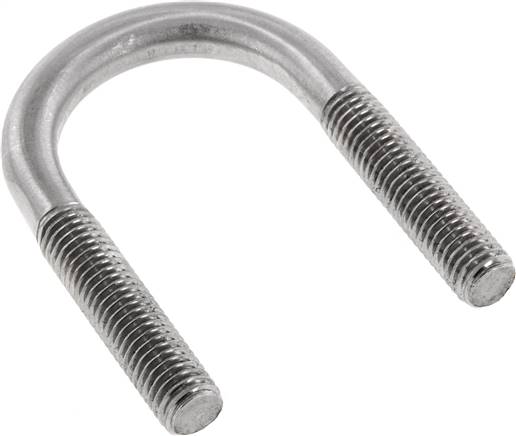

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Scope of delivery:
Round steel clamps are supplied without with shell and nuts.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Material 1.4301
D [mm] 30 - 33,7
G M 10
L [mm] 40
B [mm] 48
H [mm] 76
Suitable nuts 934-M10 ES
Further information:
{{ $t('shop.all.gewicht') }} 85 g / pcs
{{ $t('shop.all.gtin') }} 4050571605315
{{ $t('shop.display.artikel.zollwarennummer') }} 73072980
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
Drawing:
Drawing: Round steel bracket
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number RSB 34 ES.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
