Data sheet
Hose thread connection (dairy thread) Rd 110 x 1/4"-75 (3")mm
{{ $t('shop.all.artikelnummer') }}:
GTMA 3075 ES SB

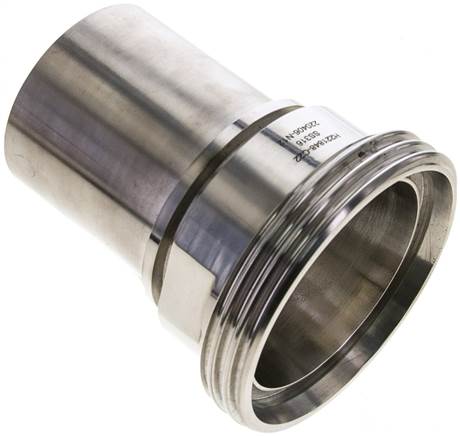

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
1.4401, seal: EPDM (FDA 21 CFR 177.2600 and (EC) 1935/2004)
Note:
The hose assembly is carried out using shell hose clamps to EN 14420-3 (DIN 2817)
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | 1.4401 |
| Hose diameter (inner) [mm] | 75 (3") |
| RD | Rd 110 x 1/4" |
| DN [mm] | 80 |
Further information:
| {{ $t('shop.all.gewicht') }} | 1,4 kg / pcs |
| {{ $t('shop.all.gtin') }} | 4050571347123 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73071990 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number GTMA 3075 ES SB.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
