Data sheet

Stainless steel mini ball valve G 1/8" Female thread,PN 25
{{ $t('shop.all.artikelnummer') }}:
KH 18 MK ES

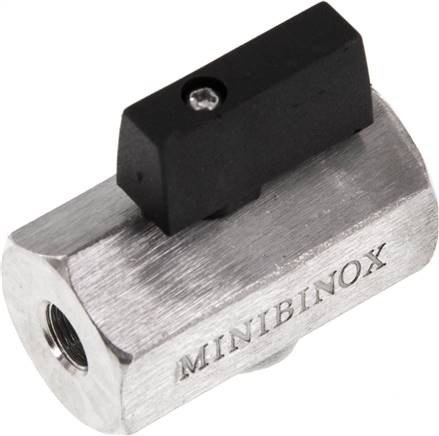

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: 1.4401, ball: 1.4408, handle screw: 1.4301, seal: PTFE / FKM, handle: polyamide
Temperature range:
-20 to +150 °C
Media:
Water, oil, compressed air, vacuum (max. -0.9 bar), fuels, solvents, aggressive media
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Version Female thread
Thread G G 1/8"
Thread G G 1/8" (female thread)
DN [mm] 6
L [mm] 50
PN [bar] -0.9 to 25
H [mm] 30
R [mm] 23
Further information:
{{ $t('shop.all.gewicht') }} 200 g / pcs
{{ $t('shop.all.gtin') }} 4050571410834
{{ $t('shop.display.artikel.zollwarennummer') }} 84818081
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
Drawing:
Drawing: Stainless steel mini ball valve with toggle handle on one side, female thread
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number KH 18 MK ES.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
