Data sheet

Ball valve, PVC-U/ FKM, Rp 1-1/4" (industrial version)
{{ $t('shop.all.artikelnummer') }}:
KH 114 PVCFKM

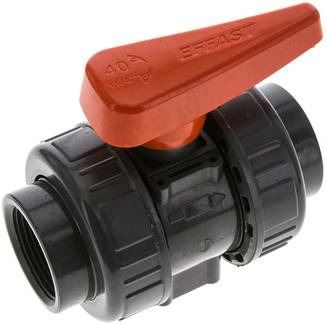

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Advantages:
•radial can be installed and removed,
•safe-float ball,
•optimum flow properties
Temperature range:
0°C to +60°C, (material PP-H: 0°C to +100°C)
Materials:
Body and ball: PVC-U, ball seat: PTFE
Operating pressure:
0 to 16 bar
Note:
•Do not use any thread sealing agent that damages PVC-U, only for plastic thread
Special quality features:
Ball valve 100% tested
Warning:
Not suitable for compressed air or other gases under pressure!
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Seals FKM
Female thread G Rp 1-1/4"
DN [mm] 32
H [mm] 121
L [mm] 21
Z [mm] 79
E [mm] 80
B [mm] 76
C [mm] 97
Flow* [l/min] 1000
Further information:
{{ $t('shop.all.gewicht') }} 460 g / pcs
{{ $t('shop.all.gtin') }} 4050571407995
{{ $t('shop.display.artikel.zollwarennummer') }} 39174000
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
Drawing:
Drawing: Ball valves with female thread, PVC-U (industrial version)
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number KH 114 PVCFKM.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
