Data sheet
Brass ball valve, Rp 1", -0,9 to 40bar, for drinking water
{{ $t('shop.all.artikelnummer') }}:
KH 10 TW

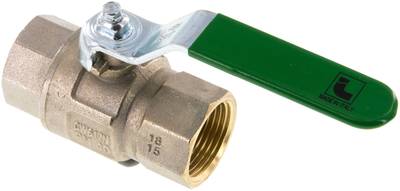

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: nickel-plated brass, lever: galvanised steel, ball: hard chromium plated brass, seal: PTFE / NBR
Temperature range:
-20 to +150 °C
Media:
Drinking water, water, compressed air, vacuum (max. -0.9 bar)
Advantages:
•By purchasing the optional combi handles, you can construct various handle variations: -Standard handle in red, yellow, blue and black, -Butterfly handle in red, yellow, blue, black and green, -Flat steel handle in red, yellow and green (optional: lockable), -Long handle in red
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Thread G | Rp 1" |
| DN [mm] | 25 |
| L [mm] | 85 |
| PN [bar] | -0,9 to 40 |
| H [mm] | 60,3 |
| R [mm] | 113,5 |
| Replacement handle | KOMBI 3 F GRUN |
| butterfly handle | KOMBI 3 K GRUN |
Further information:
| {{ $t('shop.all.gewicht') }} | 470 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571406158 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84818081 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
Drawing:
Zeichnung: DVGW-Kugelhahn für Trinkwasser
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number KH 10 TW.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
