Data sheet

Omron industrial relay, 24 V DC, 1 changeover contact
{{ $t('shop.all.artikelnummer') }}:
G2R1SN24VDC

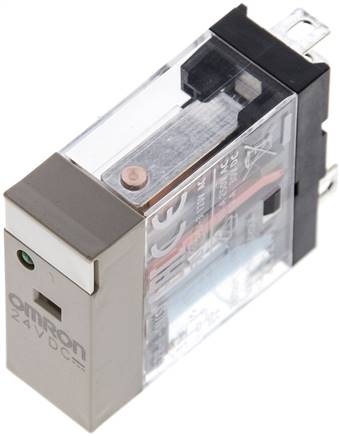

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Switching voltage max.:
400 V AC, 125 V DC
Nominal load:
10 A (2 changeover contacts: 5 A per pole) at 250 V AC, 30 V DC (Ohmic load)
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Number of changeover contacts [PCE] 1
Control voltage 24 V DC
Equipment LED display
Further information:
{{ $t('shop.all.gewicht') }} 20 g / pcs
{{ $t('shop.all.gtin') }} 4050571312138
{{ $t('shop.display.artikel.zollwarennummer') }} 85364900
{{ $t('shop.all.hersteller') }} Omron
Figure
Drawing:
Drawing: Industrial relay, 1 changer
