Data sheet
VHEF-EST-B32-G18 (4106814) Selector valve
{{ $t('shop.all.artikelnummer') }}:
OT-FESTO072248

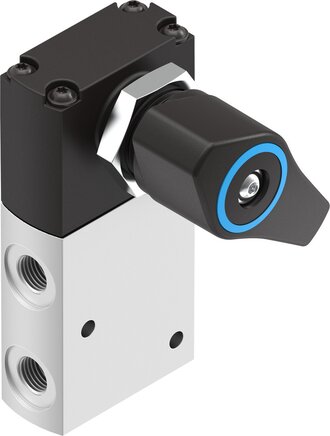

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Valve function | 3/2 bistable |
| Actuation type | Manually |
| Build.width [mm] | 20 |
| Normal nominal flow [l/min] | 750 |
| Betriebsdruck Mpa [MPa] | -0,095 bis 1 |
| Operating pressure [bar] | -0.95 to 10 |
| Construction set up | Plate seat |
| Nominal width [mm] | 5,6 |
| Exhaust function | Can be throttled |
| User information | Only actuate by hand |
| Sealing principle | Soft |
| installation position | arbitrary |
| Control type | Direct |
| Flow direction | Reversible |
| lap | Nullüberdeckung |
| Max. switching frequency [Hz] | 0,5 |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:-:-] |
| Information about operating and control medium | Oiled operation possible (required in further operations) |
| Corrosion resistant class KBK | 1 - low corrosion stress |
| Medium temperature [°C] | -10 to 60 |
| ambient temperature [°C] | -10 to 60 |
| Actuation torque [Nm] | 0,4 |
| Max. force on actuation [N] | 200 |
| Max. cross-force on actuation [N] | 200 |
| Fastening type |
Front panel integration, With throughway bores, Selectively: |
| Pneumatic connection 1 | G1/8 |
| Pneumatic connection 2 | G1/8 |
| Pneumatic connection 3 | G1/8 |
| Material information | RoHs compliant |
| Cover material | PA reinforced |
| Seals material | NBR |
| Housing material | Aluminium wrought alloy, anodised |
| Lever material | PA reinforced |
| Hand assist actuation | Ratcheting |
Further information:
| {{ $t('shop.all.gewicht') }} | 230 g / pcs |
| {{ $t('shop.all.gtin') }} | 4052568291297 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812090 |
| {{ $t('shop.all.hersteller') }} | Festo |
Figure
