Data sheet
NECU-M-PPG5PP-C1-PN (5195383) Power supply socket
{{ $t('shop.all.artikelnummer') }}:
OT-FESTO072497

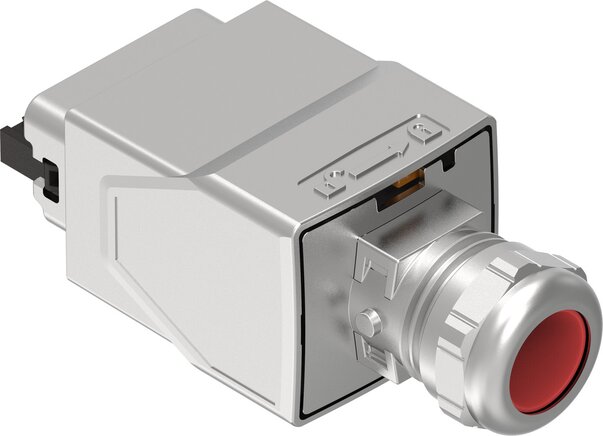

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Operating voltage range DC [V] | 0 to 24 |
| Current carrying capacity at 40°C [A] | 16,0 |
| Current carrying capacity at 40°C [kV] | 4,0 |
| Protection category |
IP65, IP67 |
| ambient temperature [°C] | -40 to 85 |
| Material information | RoHs compliant |
| LABS (PWIS) conformity | 3 |
| Material information | 1 - low corrosion stress |
| Housing material | Zinc pressure cast, nickel-plated |
| Plug contacts material | Copper allow, nickel and gold plated |
| Connection frequency | 100 |
| Cable output | straight |
| Electrical connection 1, design | Angular |
| Electrical connection 1, connection type | socket / container / …. |
| Electrical connection 1, connection technology | Wiring diagram PP, coding on Pin 2 and 5 |
| Electrical connection 1, number of pins / wires | 5 |
| Electrical connection 1, fastening type | Push-Pull with lock against accidental pulling |
| Electrical connection 2, connection technology | Spring tension clamp |
| Cable diameter [mm] | 9 to 13 |
| Conductor - nominal cross-section [mm²] | 0.75 to 2.5 |
| Information about protection category | In mounted condition |
| Housing colour | silver |
| Report | PROFINET |
| Additional functions | meets requirements acc. to AIDA |
| Electrical connection 1, occupied pin / wire | 5 |
| Leiter-Nennquerschnitt/I2 | Pg13.5 hexagonal SW22 |
| Leiter-Nennquerschnitt/ | AWG18 - 13 |
| Bearing temperature [°C] | -40 to 85 |
| Fire inspection | UL94 V-0 |
| Seals material |
NBR, TPE-V |
Further information:
| {{ $t('shop.all.gewicht') }} | 110 g / pcs |
| {{ $t('shop.all.gtin') }} | 4052568293758 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 85366990 |
| {{ $t('shop.all.hersteller') }} | Festo |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number OT-FESTO072497.
