Data sheet
EGSC-BS-KF-32-25-8P (8048306) Mini slide
{{ $t('shop.all.artikelnummer') }}:
OT-FESTO072637

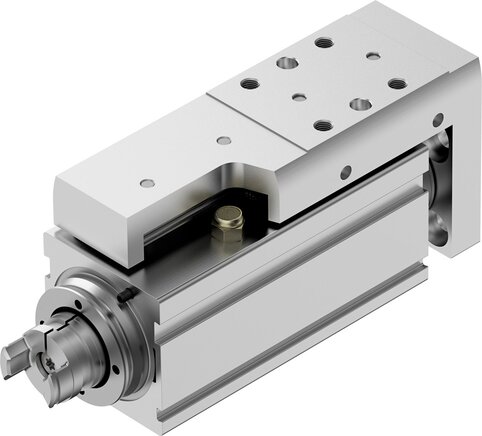

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Working stroke [mm] | 25 |
| size | 32 |
| Stroke reserve [mm] | 0 |
| Reversing play [µm] | 150 |
| Spindle diameter [mm] | 8 |
| Spindle pitch [mm/U] | 8 |
| installation position | arbitrary |
| Guide | ball guide |
| Construction set up |
Electrical mini-carriages, with ball screw drive |
| Motor type |
Step motor, Servo motor |
| Referencing |
Fixed stopper block negative, Fixed stopper block positive, Reference switch |
| Spindle type | Ball screw drive |
| Position detection | For proximity switch |
| Max. acceleration [m/s²] | 15 |
| Max. speed [m/s] | 0,5 |
| Repeatability | ±0.015 mm |
| Power-on time | 100 % |
| Corrosion resistant class KBK | 0 - No corrosion stressing |
| Sound pressure level [dB(A)] | 40 |
| Protection category | IP40 |
| LABS (PWIS) conformity [°C] | 0 to 50 |
| Suitability for the production of Li-ion batteries [N] | 3.795 |
| Dynamic load factor linear guide [N] | 2.135 |
| Dynamic load factor ball screw drive [N] | 2.000 |
| Max. force Fy [N] | 991 |
| Max. force Fz [N] | 991 |
| Max. torque Mx [Nm] | 3,40 |
| Note on the impact energy in the end positions [Nm] | 3,17 |
| Max. torque Mz [Nm] | 3,17 |
| Max. radial force on drive shaft [N] | 140 |
| Max. feed force Fx [N] | 60 |
| Guideline payload, horizontal [KGM] | 2 |
| Guideline payload, vertical [KGM] | 2 |
| Static load factor ball screw drive [N] | 3.700 |
| Static load factor linear guide [N] | 3.880 |
| Mass inertia JH per metre stroke [kg/cm²] | 0,04477 |
| Mass inertia JL per kg usable load [kg/cm²] | 0,01621 |
| Mass inertia JO [kg/cm²] | 0,00668 |
| Feed constant [mm/U] | 8 |
| Static load factor fixed bearing [N] | 1.792 |
| Guideline running performance [km] | 5.000 |
| Maintenance interval | Lifetime lubrication |
| Moving mass at 0 mm stroke [g] | 149 |
| Weight supplement per 10 mm stroke [g] | 30 |
| Base weight at 0 mm stroke [g] | 331 |
| Reference value effective load, vertical [g] | 12 |
| Fastening type |
with female threads, with centring sleeve, with accessories, with cylinder pin |
| Interface code actuator | V25 |
| Material information |
LABS containing materials included, RoHs compliant |
| Carriage guide material | Roller bearing steel |
| Guide carriage material | Roller bearing steel |
| Housing material | Aluminium wrought alloy, anodised |
| Joch plate material | Aluminium wrought alloy |
| Piston rod material | High-alloyed stainless steels |
| Carriage material | Aluminium wrought alloy, anodised |
| Spindle nut material | Roller bearing steel |
| Spindle material | Roller bearing steel |
Further information:
| {{ $t('shop.all.gewicht') }} | 400 g / pcs |
| {{ $t('shop.all.gtin') }} | 4052568295028 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84799070 |
| {{ $t('shop.all.hersteller') }} | Festo |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number OT-FESTO072637.
