Datový list
EGSC-BS-KF-60-50-12P (8048362) Mini slide
{{ $t('shop.all.artikelnummer') }}:
OT-FESTO072642

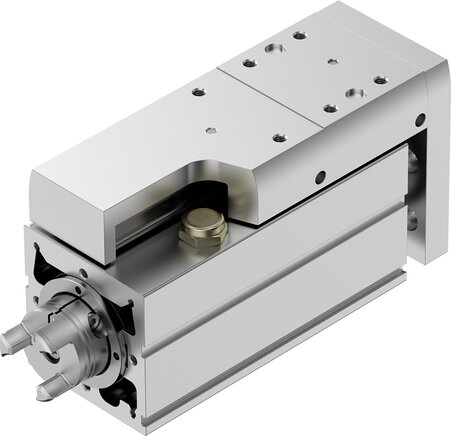

Exemplární zobrazení
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Working stroke [mm] | 50 |
| size | 60 |
| Stroke reserve [mm] | 0 |
| Reversing play [µm] | 150 |
| Spindle diameter [mm] | 12 |
| Spindle pitch [mm/U] | 12 |
| installation position | arbitrary |
| Guide | ball guide |
| Construction set up |
Electrical mini-carriages, with ball screw drive |
| Motor type |
Step motor, Servo motor |
| Referencing |
Fixed stopper block negative, Fixed stopper block positive, Reference switch |
| Spindle type | Ball screw drive |
| Position detection | For proximity switch |
| Max. acceleration [m/s²] | 15 |
| Max. speed [m/s] | 0,6 |
| Repeatability | ±0.015 mm |
| Power-on time | 100 % |
| Corrosion resistant class KBK | 0 - No corrosion stressing |
| Sound pressure level [dB(A)] | 55 |
| Protection category | IP40 |
| LABS (PWIS) conformity [°C] | 0 to 50 |
| Suitability for the production of Li-ion batteries [N] | 13.321 |
| Dynamic load factor linear guide [N] | 13.400 |
| Dynamic load factor ball screw drive [N] | 4.600 |
| Max. force Fy [N] | 4.937 |
| Max. force Fz [N] | 4.937 |
| Max. torque Mx [Nm] | 20,00 |
| Note on the impact energy in the end positions [Nm] | 30,00 |
| Max. torque Mz [Nm] | 30,00 |
| Max. radial force on drive shaft [N] | 420 |
| Max. feed force Fx [N] | 250 |
| Guideline payload, horizontal [KGM] | 10 |
| Guideline payload, vertical [KGM] | 10 |
| Static load factor ball screw drive [N] | 8.500 |
| Static load factor linear guide [N] | 26.900 |
| Mass inertia JH per metre stroke [kg/cm²] | 0,27076 |
| Mass inertia JL per kg usable load [kg/cm²] | 0,03648 |
| Mass inertia JO [kg/cm²] | 0,08386 |
| Feed constant [mm/U] | 12 |
| Static load factor fixed bearing [N] | 7.000 |
| Guideline running performance [km] | 5.000 |
| Maintenance interval | Lifetime lubrication |
| Moving mass at 0 mm stroke [g] | 675 |
| Weight supplement per 10 mm stroke [g] | 95 |
| Base weight at 0 mm stroke [g] | 1.555 |
| Reference value effective load, vertical [g] | 40 |
| Fastening type |
with female threads, with centring sleeve, with accessories, with cylinder pin |
| Interface code actuator | T42 |
| Material information |
LABS containing materials included, RoHs compliant |
| Carriage guide material | Roller bearing steel |
| Guide carriage material | Roller bearing steel |
| Housing material | Aluminium wrought alloy, anodised |
| Joch plate material | Aluminium wrought alloy, anodised |
| Piston rod material | High-alloyed stainless steels |
| Carriage material | Aluminium wrought alloy, anodised |
| Spindle nut material | Roller bearing steel |
| Spindle material | Roller bearing steel |
Další informace:
| {{ $t('shop.all.gewicht') }} | 2,1 kg / ks |
| {{ $t('shop.all.gtin') }} | 4052568295073 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84799070 |
| {{ $t('shop.all.hersteller') }} | Festo |
Obrázek
Další informace k tomuto produktu, k jeho objednávce, naleznete v našem online obchodě https://www.landefeld.de pod číslem produktu OT-FESTO072642 .
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Německo
Všechny údaje se rozumějí jako nezávazné směrné hodnoty! Za výběr údajů nepotvrzených písemně nepřebíráme žádnou záruku. Údaje o tlaku se vztahují, pokud není uvedeno jinak, ke kapalinám skupiny II při +20°C.
Naše produkty a zboží jsou určeny výhradně pro průmyslové a komerční použití.
Naše produkty a zboží jsou určeny výhradně pro průmyslové a komerční použití.
Stav: 08.12.2025
