Data sheet
OABM-P-G3-10-2 (8049141) Common supply manifo
{{ $t('shop.all.artikelnummer') }}:
OT-FESTO072656

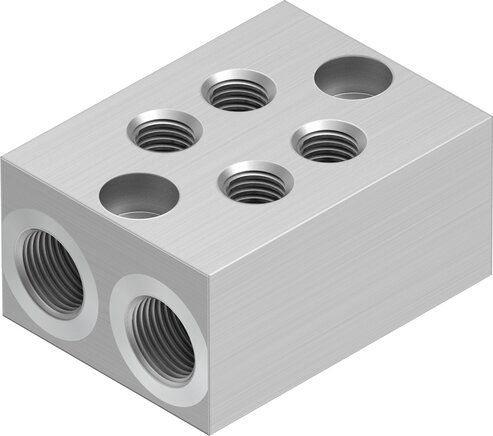

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Quantity Device spaces | 2 |
| Corrosion resistant class KBK | 2 - moderate corrosion stress |
| Max. tightening torque [Nm] | 3,3 |
| Min. tightening torque [Nm] | 0,3 |
| Fastening type | With throughway bores |
| Pneumatic connection 1 | G1/8 |
| Material information | RoHs compliant |
| Connection plate material | Aluminium wrought alloy |
Further information:
| {{ $t('shop.all.gewicht') }} | 55 g / pcs |
| {{ $t('shop.all.gtin') }} | 4052568295219 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84149000 |
| {{ $t('shop.all.hersteller') }} | Festo |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number OT-FESTO072656.
