Data sheet
CPX-4AE-4AA-H (8059847) Input module
{{ $t('shop.all.artikelnummer') }}:
OT-FESTO072697

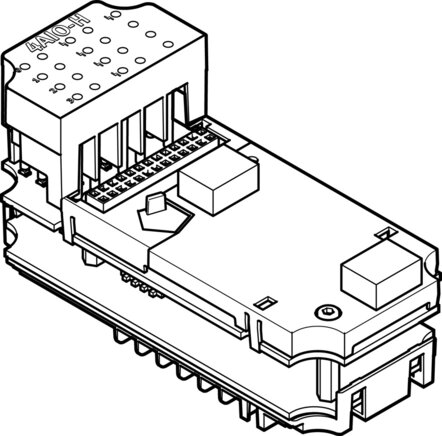

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Dimensions W x L x H |
50 mm x 107 mm x 70 mm, (Incl. linking block and connectors) |
| Diagnosis |
Parametrierfehler, Drahtbruch pro Kanal, Grenzwertverletzung nach NE43 pro Kanal, Grenzwertverletzung pro Kanal, Kurzschluss/Überlast pro Kanal, Über-/Unterlauf |
| Parameterising |
Parametrierfehler, Signalbereich pro Kanal, Anzahl HART Wiederholungen, Datenformat, Drahtbruch pro Kanal, Failsafe pro Kanal, Forcen pro Kanal, Grenzwertüberwachung/Kanal, Grenzwertverletzung nach NE43 pro Kanal, Grenzwertverletzung pro Kanal, HART Variablen, Hysterese für Grenzwerte, Idle Mode pro Kanal, Kurzschluss/Überlast pro Kanal, Messwertglättung, Über-/Unterlauf, Überwachung Drahtbruch/Kanal, Überwachung nach NE43 Eingänge, Überwachung Überlauf/Unterlauf, Verhalten nach Kurzschluss/Überlast |
| Operating element | DIL switch |
| LED displays |
1 Sammeldiagnose, 4 Kanaldiagnose, 4 Kanalstatus |
| Operating voltage range DC [V] | 18 to 30 |
| Intrinsic power input at operating voltage | Type 170 mA |
| Nominal operating voltage DC [V] | 24 |
| Power blackout bridging [ms] | 10 |
| Potential separation channel - internal bus | yes |
| Potential separation channel - channel | no |
| Corrosion resistant class KBK |
(In integrated condition), 1 - low corrosion stress |
| Bearing temperature [°C] | -20 to 70 |
| Protection category | Depends on connection block |
| ambient temperature [°C] | -5 to 50 |
| Report | Hard |
| Max. line length | 500 m |
| Material information | RoHs compliant |
| Housing material |
PC, PA reinforced |
| Fastening type | on linking block |
| Fuse (short circuit) | Internal electronic fuse Per channel |
| CE certificate (see declaration of conformity) | to EU EMC directive |
| Reverse polarity protection | for all electrical connections |
| Relative humidity |
95 %, Not condensing |
| Weight | 0.05 % at 25 °C |
| Use error limits related to ambient temperature range | ±0,3 % |
| Base error limit at 25 °C | ±0,1 % |
| Data format |
15 bit + Sign, Scalable to 15 bits |
| Sensor type |
0 - 20 mA, 4 - 20 mA, 4 - 20 mA with HART |
| Pitch dimension [mm] | 50 |
| Number of selectable analog inputs / outputs | 4 |
| Oscillation strength | Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27 |
| Max. load [Ohm] | 750 |
| Max. input resistance [Ohm] | 300 |
| Max. short circuit current [mA] | 22 |
| Max. no-load voltage [V] | 28,8 |
| Min. available sensor voltage | 20,7 V for 20 mA |
| Signal range |
0 - 20 mA, 4 - 20 mA, 4 - 20 mA with HART |
Further information:
| {{ $t('shop.all.gewicht') }} | 105 g / pcs |
| {{ $t('shop.all.gtin') }} | 4052568295622 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 85389099 |
| {{ $t('shop.all.hersteller') }} | Festo |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number OT-FESTO072697.
