Data sheet
NPFC-R-G18-M5-F (8069219) Reducing sleeve
{{ $t('shop.all.artikelnummer') }}:
OT-FESTO072906

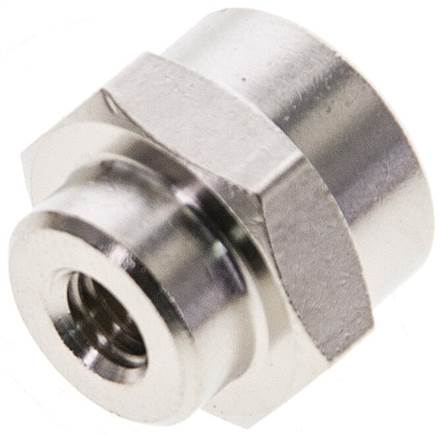

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Thread connection material | brass, nickel-plated |
| Packing size | 10 |
| Operating pressure [bar] | -0.95 to 50 |
| Operating medium | Compressed air to ISO8573-1:2010 [-:-:-] |
| Corrosion resistant class KBK | 1 - low corrosion stress |
| LABS (PWIS) conformity [°C] | -20 to 150 |
| Pneumatic connection 1 | G1/8 |
| Pneumatic connection 2 | M5 |
| Material information | RoHs compliant |
Further information:
| {{ $t('shop.all.gewicht') }} | 9 g / pcs |
| {{ $t('shop.all.gtin') }} | 4052568297572 |
| {{ $t('shop.display.artikel.verpackungseinheit') }} | 10 pcs |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 74122000 |
| {{ $t('shop.all.hersteller') }} | Festo |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number OT-FESTO072906.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
