Data sheet

CPX-E-1CI (4827505) Counter module
{{ $t('shop.all.artikelnummer') }}:
OT-FESTO079023

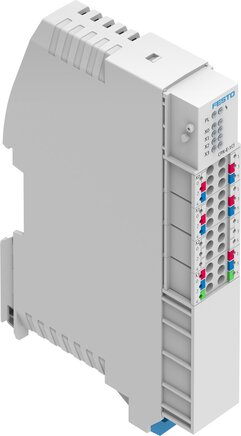

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Dimensions W x L x H 18.9 mm x 76.6 mm x 124.3 mm
Pitch dimension [mm] 18,9
Diagnosis via LED Fehler pro Modul,
Status pro Kanal,
Fehler Geberversorgung,
Geberfehler,
Normalbetrieb Geber,
Normalbetrieb Geberversorgung
Diagnosis via bus Kurzschluss/Überlast Sensorversorgung,
Parameterfehler,
Fehler am Messsystem,
Überwachung Drahtbruch,
Überwachung Nullimpuls,
Überwachung Spurfehler
Module parameter Internal Revision ID,
Entprellzeit Digitaleingänge,
Impulse/Nullimpuls,
Integrationszeit Geschwindigkeitsmessung,
Ladewert,
Latchereignis,
Latchsignal,
Latchverhalten,
Obere Zählgrenze,
Signalart/Gebertyp,
Signalauswertung,
Überwachung Leitungsbruch,
Überwachung Nullimpuls,
Überwachung Spurfehler,
Untere Zählgrenze
Channel parameter Signal extension
Fuse (short circuit) Internal electronic fuse Per module
Potential separation channel - internal bus no
Potential separation channel - channel no
Voltage supply, connection type Multi tube holder
Voltage supply, connection technology Spring tension clamp
Voltage supply, number of poles/wires 6
Voltage supply, conductor cross-section [mm²] 0.2 to 1.5
Voltage supply, information on conductor cross-section 0.2 - 2.5 mm² for flexible conductor without wire end sleeve
Permission RCM mark
CE certificate (see declaration of conformity) to EU EMC directive
Oscillation strength Transport use test with severity level 1 to FN 942017-4 and EN 60068-2-6
Shock resistance Shock test with degree of severity 1 to FN 942017-5 and EN 60068-2-27
Corrosion resistant class KBK 0 - No corrosion stressing
Bearing temperature [°C] -20 to 70
Relative humidity 95 %,
Not condensing
Protection category IP20
ambient temperature [°C] -5 to 50
Information about ambient temperature -5 - 60 °C with vertical installation
Max. address volume outputs [Byte] 2
Fastening type With Slot rail
Material information LABS containing materials included,
RoHs compliant
Housing material PA
Quantity inputs 4
Input debouncing time 0,02 ms,
0,1 ms,
3 ms
Intrinsic power input operating voltage electronics/sensors Type 15 mA
Max. cumulative current inputs per module [A] 1,8
Nominal operating voltage DC electronics / sensor [V] 24
Switch level Signal 0: <= 5 V,
Signal 1: >= 11 V
Permitted voltage oscillations electronics/sensors ± 25 %
Max. address volume inputs [Byte] 12
Characteristic curves inputs to IEC 61131-2 type 3
Switching logic inputs PNP (positive switching),
2-wire sensors acc. to IEC 61131-2,
3-wire sensors acc. to IEC 61131-2
Electrical connection: input, function Digital input
Electrical connection: input, connection type 2x multi tube holder
Electrical connection: input, connection technology Spring tension clamp
Electrical connection: input, number of pins / wires 6
Electrical connection: inlet, conductor cross-section [mm²] 0.2 to 1.5
Electrical connection: inlet, information on conductor cross-section 0.2 - 2.5 mm² for flexible conductor without wire end sleeve
Power blackout bridging [ms] 10
Electrical connection: input 2, function Zähleingang
Electrical connection: input 2, connection type Multi tube holder
Electrical connection: input 2, connection technology Spring tension clamp
Electrical connection: input 2, number of pins / wires 6
Electrical connection: input 2, wiring diagram 00995848
Electrical connection: input 2, conductor cross-section [mm²] 0.2 to 1.5
Electrical connection: inlet 2, information on conductor cross-section 0.2 - 2.5 mm² for flexible conductor without wire end sleeve
Voltage supply, function Geberversorgung
Further information:
{{ $t('shop.all.gewicht') }} 125 g / pcs
{{ $t('shop.all.gtin') }} 4052568418960
{{ $t('shop.display.artikel.zollwarennummer') }} 85389099
{{ $t('shop.all.hersteller') }} Festo
