Data sheet
VABM-P6-15MB-G18-M5-8 (8083548) Manifold rail
{{ $t('shop.all.artikelnummer') }}:
OT-FESTO081875

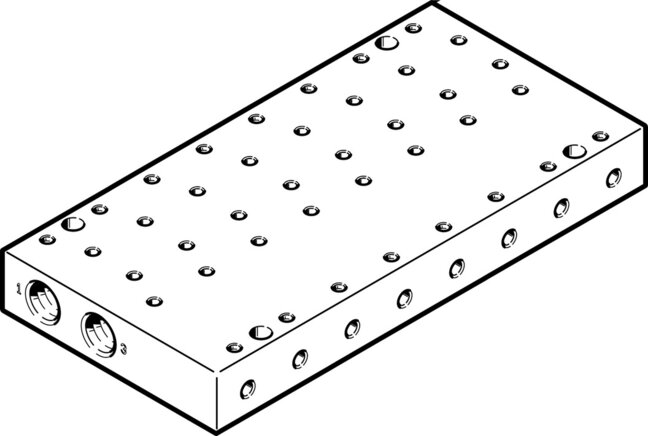

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Pitch dimension [mm] | 15 |
| Construction set up | Anschlussrichtung unten |
| Max. number of valve positions | 8 |
| Corrosion resistant class KBK | 2 - moderate corrosion stress |
| LABS (PWIS) conformity [Nm] | 0,6 |
| Pneumatic connection 1 | G1/8 |
| Pneumatic connection 2 | M5 |
| Material information | RoHs compliant |
| Material information | Aluminium wrought alloy |
Further information:
| {{ $t('shop.all.gewicht') }} | 280 g / pcs |
| {{ $t('shop.all.gtin') }} | 4052568449209 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84819000 |
| {{ $t('shop.all.hersteller') }} | Festo |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number OT-FESTO081875.
