Data sheet
Connection line Festo square plug H, PUR cable
{{ $t('shop.all.artikelnummer') }}:
KAB H 0,5 P

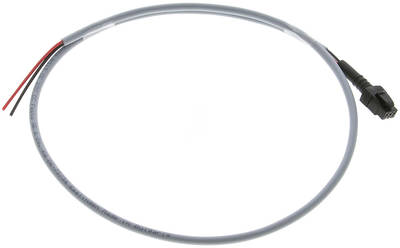

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Description:
Pre-fabricated connection lines with rectangular plug H (6.7x4.2) on one side and 2 loose cable ends on the other side.
Temperature range:
-5 to +60 °C
Voltage:
max. 60 V DC, max. 3 A
Protection class:
IP 40
Cable:
2x 0.17 mm² (single wires or with PUR sheath)
Cable layout:
Pin 1 - red, Pin 3 - black, Pin 2 - not occupied
Suitable:
These cables are used preferentially for the connection of Festo valves. You have a selection between a 2-wire PUR cable (only for static applications) or 2 single wires (standard).
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | PUR cable |
| Cable length [MTR] | 0,5 |
Further information:
| {{ $t('shop.all.gewicht') }} | 10 g / pcs |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 85444290 |
| {{ $t('shop.all.hersteller') }} | Festo |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number KAB H 0,5 P.
