Data sheet

pressure limiting valve 3x G 1/2", 5 to 50 bar, max. 30 l/min
{{ $t('shop.all.artikelnummer') }}:
DBV12P50Q30

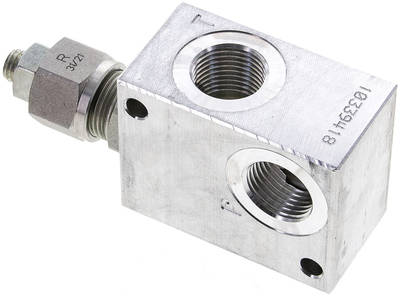

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Suitable:
The valves restrict the system pressure and are ideal for overpressure protection as well as for continuous operation.
Materials:
Body: Aluminium, screw-in valve: zinc plated steel, seal: NBR
Temperature range:
-20 to +80 °C
Media:
Hydraulic oils on the basis of mineral oil
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Nominal flow [l/min] 30
Thread 3x G 1/2"
Pressure control range* [bar] 5 - 50
Version direct control
Further information:
{{ $t('shop.all.gewicht') }} 380 g / pcs
{{ $t('shop.all.gtin') }} 4050571245955
{{ $t('shop.display.artikel.zollwarennummer') }} 84812010
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
Drawing:
Drawing: Pipe pressure relief valve (nominal flow 30 l/min)
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number DBV12P50Q30.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
