Data sheet
Festo-Anschlussplatte 566622 VABM-L1-14S-G14-6
{{ $t('shop.all.artikelnummer') }}:
VABM-L1-14S-14-6

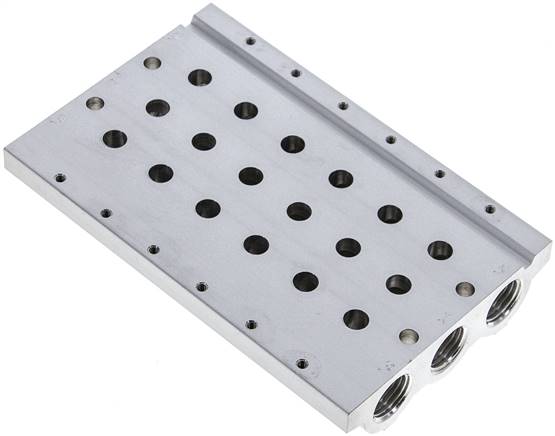

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
aluminium
Scope of delivery:
Base plate without screws and seals. Dummy plates are supplied including screws and seal.
Note:
Please order a separate set of seals per valve.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | for LK14 valves |
| Number of stations [PCE] | 6 |
| Description | Multiple manifold |
| Thread Supply air (2x) | G 1/4" |
| Thread exhaust air (4x) | G 1/4" |
| matching dummy plate | VABB-L1-14 |
| Set of seals | VABD-L1-14XK-S-18-S |
Further information:
| {{ $t('shop.all.gewicht') }} | 300 g / pcs |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84819000 |
| {{ $t('shop.all.hersteller') }} | Festo |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number VABM-L1-14S-14-6.
