Data sheet
Festo-Magnetventil 8042554 VUVG-BK10-T32C-AT-F-1H2L-S
{{ $t('shop.all.artikelnummer') }}:
VUVG-BK10-T32C-F-H

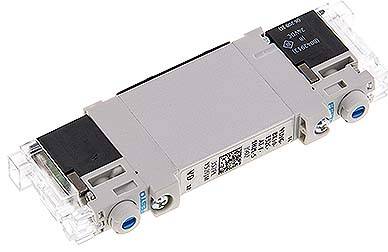

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: Aluminium / plastic, seals: NBR
Temperature range:
-5 to +50 °C
Media:
oiled and unoiled filtered compressed air
Control voltages:
24 V DC
Voltage tolerance:
± 10 %
Power consumption:
0,7 W
Protection class:
IP 65 (with rectangular plug H: IP 40)
Switching time:
< 17 ms
Note:
Please order the connecting cable - suitable for the relevant connection - separately. The valvea are supplied including seals and screws and must be mounted on the connection plate.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | Rectangular plug H, with LED and protection circuit |
| function | 2x 3/2-way (NC/NC) |
| Operating pressure [bar] | 1,5 - 7 |
| flow [l/min] | 160 |
Further information:
| {{ $t('shop.all.gewicht') }} | 55 g / pcs |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812090 |
| {{ $t('shop.all.hersteller') }} | Festo |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number VUVG-BK10-T32C-F-H.
