Data sheet
Festo-Magnetventil 8042562 VUVG-LK14-T32C-AT-G18-1H2L-S
{{ $t('shop.all.artikelnummer') }}:
VUVG-LK14-T32C-18-H

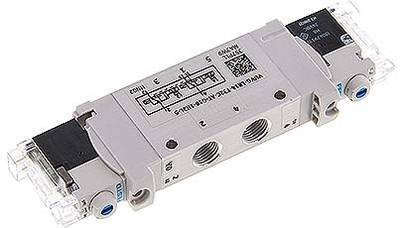

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: Aluminium / plastic, seals: NBR
Temperature range:
-5 to +50 °C
Media:
oiled and unoiled filtered compressed air
Control voltages:
24 V DC
Voltage tolerance:
± 10 %
Power consumption:
0,7 W
Protection class:
IP 65 (with rectangular plug H: IP 40)
Switching time:
< 24 ms
Note:
Please order the connection cable fitting the respective connection separately.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | Rectangular plug H, with LED and protection circuit |
| function | 2x 3/2-way (NC/NC) |
| Thread (3x) | G 1/8" |
| Thread exhaust air (2x) | G 1/8" |
| Operating pressure [bar] | 1,5 - 7 |
| flow [l/min] | 570 |
Further information:
| {{ $t('shop.all.gewicht') }} | 80 g / pcs |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812090 |
| {{ $t('shop.all.hersteller') }} | Festo |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number VUVG-LK14-T32C-18-H.
