Data sheet

Ind. proximity switch, M 5, SN0,8 - M 8 plug (3-pin)
{{ $t('shop.all.artikelnummer') }}:
SIN M5-B-0,8 S8

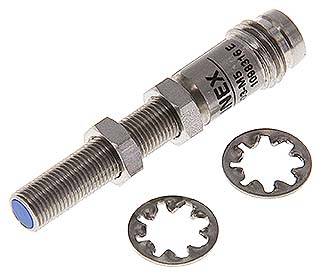

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: nickel-plated / chrome-plated brass or stainless steel, sensor surface: plastic
Temperature range:
-25 to +70 °C
Protection class:
IP 67
Operating voltage:
10 to 30 V (DC)
Control output (PNP):
1 switching output (normally open), max. 200 mA
Switching capacity:
max. 6 W
Switching status indicator:
LED, orange
Protection circuit:
Short-circuit protection, induction protection, reverse polarity protection
Advantages:
•IO link compatible,
•outstanding value
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Connection M 8 plug (3-pin)
Version flush installable, NO contact
Design M 5
Safety distance (SN) [mm] 0,8
G M 5x0,5
L2 [mm] 38
L3 [mm] 15,0
H1 [mm] 2,4
B1 [mm] 3,3
B2 [mm] 5
Further information:
{{ $t('shop.all.gewicht') }} 15 g / pcs
{{ $t('shop.all.gtin') }} 4050571890148
{{ $t('shop.display.artikel.zollwarennummer') }} 85365019
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
Drawing:
Drawing: Inductive proximity switch, flush mountable, with connector
Drawing: Minimum distance to maintain for inductive sensors: Flush mounted
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number SIN M5-B-0,8 S8.
