Data sheet

Ind. proximity switch, M 18, SN5 - M 12 plug (A-coded, 4-pole)
{{ $t('shop.all.artikelnummer') }}:
SIN M18-B-5 S12 L

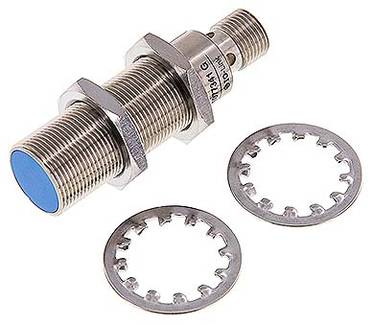

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: nickel-plated / chrome-plated brass or stainless steel, sensor surface: plastic
Temperature range:
-25 to +70 °C
Protection class:
IP 67
Operating voltage:
10 to 30 V (DC)
Control output (PNP):
1 switching output (normally open), max. 200 mA
Switching capacity:
max. 6 W
Switching status indicator:
LED, orange
Protection circuit:
Short-circuit protection, induction protection, reverse polarity protection
Advantages:
•IO link compatible,
•outstanding value
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Connection M 12 plug (A-coded, 4-pole)
Version flush installable, NO contact
Design M 18
Safety distance (SN) [mm] 5
G M 18x1
L2 [mm] 63,5
L3 [mm] 13,5
H1 [mm] 15,0
B1 [mm] 12,0
B2 [mm] 25
Further information:
{{ $t('shop.all.gewicht') }} 65 g / pcs
{{ $t('shop.all.gtin') }} 4050571890049
{{ $t('shop.display.artikel.zollwarennummer') }} 85365019
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
Drawing:
Drawing: Inductive proximity switch, flush mountable, with connector
Drawing: Minimum distance to maintain for inductive sensors: Flush mounted
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number SIN M18-B-5 S12 L.
