Data sheet

Ind. proximity switch, M 12, SN4 - M 12 plug (A-coded, 4-pole)
{{ $t('shop.all.artikelnummer') }}:
SIN M12-NB-4 S12 L

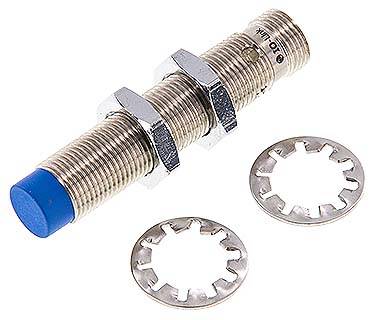

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: nickel-plated / chrome-plated brass or stainless steel, sensor surface: plastic
Temperature range:
-25 to +70 °C
Protection class:
IP 67
Operating voltage:
10 to 30 V (DC)
Control output (PNP):
1 switching output (normally open), max. 200 mA
Switching capacity:
max. 6 W
Switching status indicator:
LED, orange
Protection circuit:
Short-circuit protection, induction protection, reverse polarity protection
Advantages:
•IO link compatible,
•outstanding value
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Connection M 12 plug (A-coded, 4-pole)
Version non-flush installable, NO contact
Design M 12
Safety distance (SN) [mm] 4
G M 12x1
L2 [mm] 60
L3 [mm] 11,0
H1 [mm] 18,0
H2 [mm] 6
B1 [mm] 13,0
B2 [mm] 40
Further information:
{{ $t('shop.all.gewicht') }} 36 g / pcs
{{ $t('shop.all.gtin') }} 4050571889982
{{ $t('shop.display.artikel.zollwarennummer') }} 85365019
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
Drawing:
Drawing: Inductive proximity switch, non-flush mountable, with connector
Drawing: Minimum distance to maintain for inductive sensors: Non-flush mounted
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number SIN M12-NB-4 S12 L.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
