Data sheet
Double nipple, G 1/2"-G 1/2", flat sealing, Brass
{{ $t('shop.all.artikelnummer') }}:
DN 1212 F MS

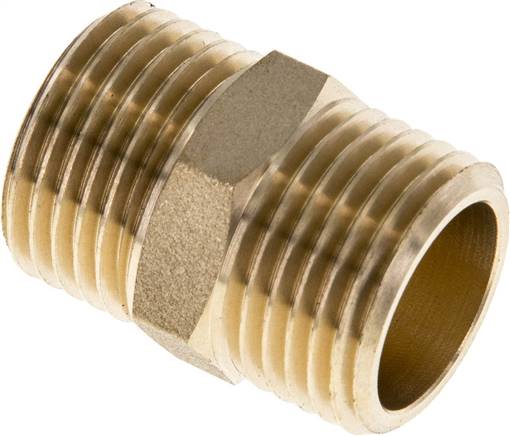

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Brass |
| Thread | G 1/2" |
| SW [mm] | 21 |
| L [mm] | 30 |
| L1 [mm] | 12 |
| Nominal width [mm] | 15 |
Further information:
| {{ $t('shop.all.gewicht') }} | 32 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571900250 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 74122000 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
Drawing:
Drawing: Double nipple with cylindrical thread
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number DN 1212 F MS.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
