Data sheet
Vulcanised fibre sealing ring (20,2x23,9x1,5 mm)
{{ $t('shop.all.artikelnummer') }}:
FI 20241,5

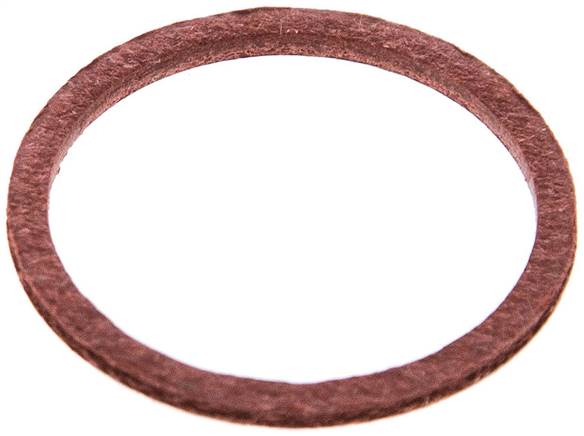

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Temperature range:
-10 to +100 °C
Operating pressure:
-0,95 to 16 bar
Suitable:
For oxygen, compressed air and gasses
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Inner diameter [mm] | 20,2 |
| Outer diameter [mm] | 23,9 |
| Height [mm] | 1,5 |
Further information:
| {{ $t('shop.all.gewicht') }} | 0,2 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571902803 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 39269097 |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number FI 20241,5.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
