Data sheet

Pneumatic drinking water ball valve, Rp 1", double acting
{{ $t('shop.all.artikelnummer') }}:
KH 10 TW P

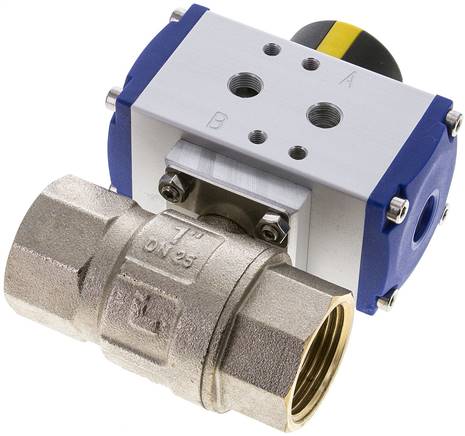

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Advantages:
•Ball valve (as manually operated version) DVGW & KTW certified, EN 13828
Ball valve
Materials:
Body: nickel-plated brass, ball: hard chromium plated brass, seal: PTFE / NBR
Temperature range:
-20 to +150 °C
Media:
Drinking water, water, compressed air, vacuum (max. -0.9 bar)
Rotary actuator
Design:
ATEX-compliant Ex II 2GD c 85° C
Materials:
Body: anodised aluminium, rack and piston: aluminium, cover: acetal resin, seal: NBR
Temperature range:
-20 to +80 °C
Control pressure:
6 to 10 bar (lower pressures on request)
Warning:
In case of high media temperatures, the actuator must be cooled if necessary!
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Version double acting
Thread ball valve Rp 1"
DN [mm] 25
Installation length ball valve [mm] 85
PN [bar] -0,9 to 40
Spare drives PDD 001-F04-VK9
Media temperature [°C] -20 to +150
Further information:
{{ $t('shop.all.gewicht') }} 850 g / pcs
{{ $t('shop.all.gtin') }} 4050571912468
{{ $t('shop.display.artikel.zollwarennummer') }} 84818081
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
{{ $t('shop.all.hersteller') }} Köly Deutschland
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number KH 10 TW P.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
