Data sheet
Eco-Line maintenance unit, G 3/8", drain semi-automatic
{{ $t('shop.all.artikelnummer') }}:
EAC 3010-03

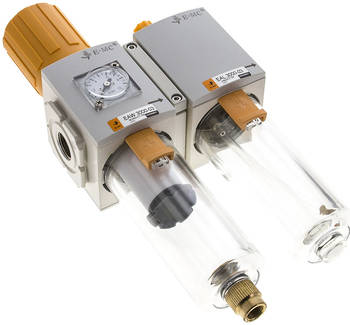

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Version:
Filter regulator, reversible with mounted lubricator and wall mounting
Materials:
Bodies: aluminium, spring hood: polyamide, diaphragm and seals: NBR, container: polycarbonate
Temperature range:
-5 to +60 °C
Input pressure:
1,5 to 10 bar
Pressure regulation range:
0,5 to 9 bar
Pressure gauge display:
0 to 10 bar
Condensate draining:
semi-automatic**
Pore width in the filter:
5 µm
Erreichbare Druckluftqualität (ISO 8573-1) ohne Verwendung des Ölers:
[6:4:4] (ohne Kältetrockner: [6:7:4])
Media:
Compressed air, neutral gases
Scope of delivery:
Maintenance unit including pressure gauge and mounting bracket
Advantages:
•Automatic venting in case of overpressure on the secondary side,
•Simple assembly of individual components of a series by means of coupling packages,
•Handwheel can be locked by pushing down,
•Wall mounting by means of coupling package with wall bracket already installed,
•Space-saving compact pressure gauge already installed,
•Filling with oil under pressure is possible,
•Double-walled transparent vessel (not series 2A)
•Simple assembly of individual components of a series by means of coupling packages,
•Handwheel can be locked by pushing down,
•Wall mounting by means of coupling package with wall bracket already installed,
•Space-saving compact pressure gauge already installed,
•Filling with oil under pressure is possible,
•Double-walled transparent vessel (not series 2A)
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Model series | Eco-Line 3A |
| Thread | G 3/8" |
| Container design | Plastic container, double-walled |
| Condensate drain | Semi-automatic |
| flow [l/min] | 33 - 1800 |
| Max. condensate amount [cm³] | 40 |
| Oil supply [cm³] | 76 |
| Reaction limit (5.1 bar) [l/min] | 33 |
| L [mm] | 114 |
| H [mm] | 240 |
| H1 [mm] | 97 |
| Switch panel thread | M 36x1,5 |
| Coupling kit | KP EA3000 |
Further information:
| {{ $t('shop.all.gewicht') }} | 1,1 kg / pcs |
| {{ $t('shop.all.gtin') }} | 4050571924140 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84811005 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
| {{ $t('shop.all.hersteller') }} | EMC |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number EAC 3010-03.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
