Data sheet
Quick fastener FHS-F, M 8x30 (27/18, 28/30, 30/15)
Item number:
FI FHS F 27 M8X30

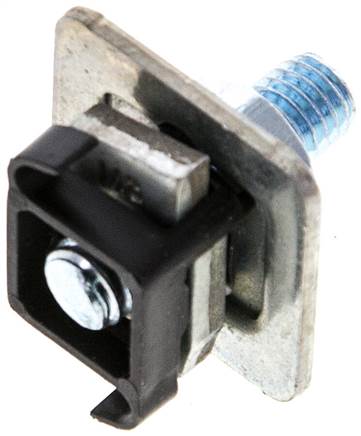

Example illustration
Item description
Application:
Quick fastener for easy (also retrofitting) insertion into mounting rails. Installation is performed by inserting and subsequently twisting the quick fastener in the rail or bracket. The quick fastener can be moved in the rail as required for alignment without falling out after pre-assembly. After alignment, the bolt should be secured with the nut. Fits all standard mounting rails with 15, 16 and 17 mm slot width.
Advantages:
•time-saving two-finger quick assembly,
•simple handling: insert in the assembly rail, turn and the rapid fastener sits in place,
•fast, flexible alignment,
•can be moved laterally at any time
•simple handling: insert in the assembly rail, turn and the rapid fastener sits in place,
•fast, flexible alignment,
•can be moved laterally at any time
Properties
| suitable for profile type | 27/18, 28/30, 30/15 |
| Thread | M 8 |
| Length (over everything) [mm] | 30 |
| Slot width [mm] | 15 - 16 |
Further information:
| Weight | 31 g / pcs |
| GTIN | 4050571913090 |
| Customs duty number | 83025000 |
| RoHS compliant | Yes |
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number FI FHS F 27 M8X30.
