Data sheet
Compact swivel table, size 20, with fixed stop
{{ $t('shop.all.artikelnummer') }}:
EMQ 20 A

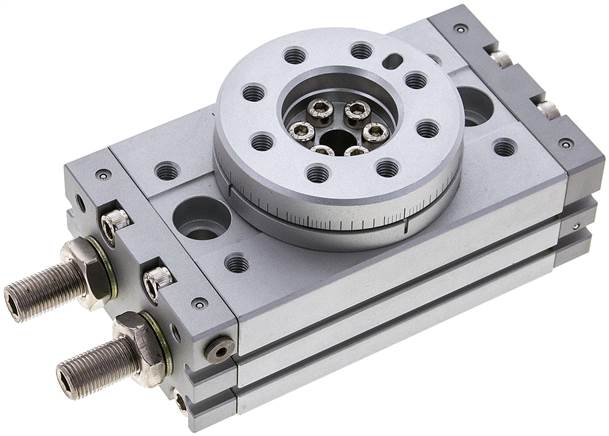

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body and swivel table anodized aluminum, Piston: Stainless steel with magnet insert, Pinion: Steel, Seals: NBR
Temperature range:
0 to +60 °C
Operating pressure:
max. 10 bar (size 7: max. 7 bar), with shock absorbers: max. 6 bar
Swivel angle:
adjustable 0° - 190°
Version:
With Magnetic piston
Cylinder switch type:
D
Advantages:
•Positioning hole on swivel table, body top and body at bottom for repeatable workpiece mounting,
•Internal table diameter and external table diameter as well as bottom hole suitable for precise alignment of the swivel axis,
•Simple fitting from below and above,
•Hollow shaft for media supply to devices mounted on the swivel table,
•Air connection either from the front or laterally (closed with sealing plugs),
•Main dimensions identical to SMC series MSQ / EMSQ
•Internal table diameter and external table diameter as well as bottom hole suitable for precise alignment of the swivel axis,
•Simple fitting from below and above,
•Hollow shaft for media supply to devices mounted on the swivel table,
•Air connection either from the front or laterally (closed with sealing plugs),
•Main dimensions identical to SMC series MSQ / EMSQ
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | with fixed stop |
| size | 20 |
| optimum swing time for 90° [s] | 0,2 - 1,0 |
| Operating pressure [bar] | max. 10 |
| G (compressed air port) | M 5 |
| optional compressed air port (closed) | M 5 |
| Repair sets | EMQ 20 REP |
| Spare shock absorber (1 count) | EMQ 20/30 SD |
| AA [mm] | 67,8 |
| A [mm] | 65 |
| AV [mm] | 27,5 |
| AW [mm] | 16,0 |
| AY [mm] | 5 |
| BA | 12,0 |
| BB [mm] | 47,0 |
| BC [mm] | 30,0 |
| BD [mm] | 76 |
| BE [mm] | 34 |
| CA [mm] | 6,5 |
| CB [mm] | 30,0 |
| D (h9) [mm] | 60 |
| DD (h9) [mm] | 61 |
| DE (H9) | 28 |
| DF [mm] | 9 |
| DG (H9) | 17 |
| FA [mm] | 9,8 |
| FB [mm] | 6,5 |
| FC [mm] | 3,0 |
| FD [mm] | 6,5 |
| H [mm] | 17 |
| J [mm] | 8,6 |
| JA [mm] | 14 |
| JB | 8,5 |
| JC | M 10 |
| JC1 [mm] | 15 |
| JJ | M 6 |
| JU | M 10x1 (FT) |
| Q [mm] | 37 |
| S [mm] | 117 |
| SD [mm] | 10,0 |
| SE [mm] | 12 |
| SF [mm] | 59 |
| SU [mm] | 24,8 |
| UU [mm] | 54 |
| WA [mm] | 20,5 |
| WB [mm] | 4H9 (4.5 deep) |
| WD | M 6 |
| WD1 [mm] | 10 |
| WF | 43 |
| XA | 36 |
| YA [mm] | 24 |
Further information:
| {{ $t('shop.all.gewicht') }} | 1,1 kg / pcs |
| {{ $t('shop.all.gtin') }} | 4050571931759 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84123100 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
| {{ $t('shop.all.hersteller') }} | EMC |
Figure
Drawing:
Drawing: Compact swivelling table size 10 - 50
Drawing: Angle of rotation setting
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number EMQ 20 A.
