Data sheet
Union nut 4x2mm(M 9x1), Polypropylene
{{ $t('shop.all.artikelnummer') }}:
MCK 2 PP E

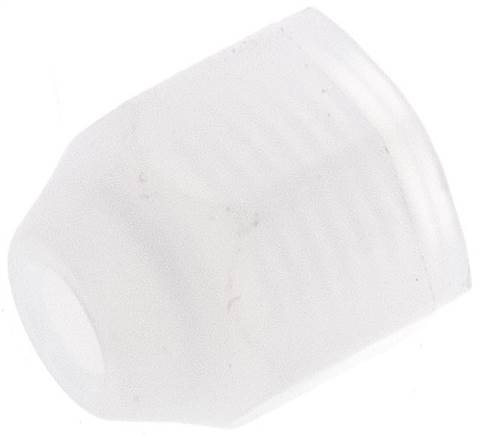

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Polypropylen (FDA-konform) oder PVDF (FDA-konform), Dichtungen (wenn vorhanden): FKM (FDA-konform)
Temperature range:
Type polypropylene 0°C to +80°C, type PVDF: -20°C bis +120°C
Operating pressure:
-1 to 10 bar
Media:
lubricated and unlubricated compressed air, water (also demineralised), neutral liquids and gases, many chemicals, also suitable for food
Advantages:
• resistant to a large number of chemicals, hydrolysis resistant,
• manufactured free of silicone and oil,
• plastics used have FDA-approval,
• suitable for use with hoses of PA, PUR, PE, PTFE and PFA
• manufactured free of silicone and oil,
• plastics used have FDA-approval,
• suitable for use with hoses of PA, PUR, PE, PTFE and PFA
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Polypropylene |
| Thread | M 9x1 |
| Hose diameter (outer x inner) [mm] | 4x2 |
| Temperature range [°C] | 0 to +80 |
Further information:
| {{ $t('shop.all.gewicht') }} | 1,2 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571934873 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 39174000 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
| {{ $t('shop.all.hersteller') }} | Sang-A |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number MCK 2 PP E.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 08.12.2025
