Podatkovni list

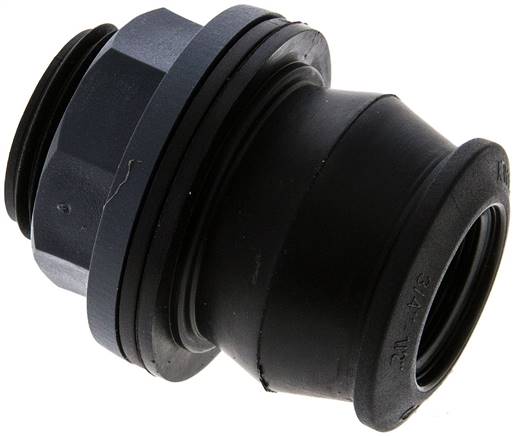

Container grommet G 3/4" (AG) - G 1/2" (FT), PP
{{ $t('shop.all.artikelnummer') }}:
DFB 34 IA PP
Vzorčni prikaz
{{ $t('shop.display.artikel.beschreibung_headline') }}
Application:
Assembly is also only possible from one side. Therefore, ideal for closed tanks (for example, cisterns, water tanks or rain barrels), where the is either not accessible or only accessible with difficulty.
Materials:
Polypropylene, seal: NBR
Temperature range:
+5 do +80 °C
Media:
Water, oil weak alkalis and acids
Advantages:
•The tank only needs to be accessible from one side, hence fast and simple assembly,
•suitable for straight and curved tank walls (from 500 mm tank radius onwards),
•Male and female thread available for installing fit-on components,
•UV-resistant
•suitable for straight and curved tank walls (from 500 mm tank radius onwards),
•Male and female thread available for installing fit-on components,
•UV-resistant
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Pregradni navoj G1 | G 3/4" |
| Navoj znotraj G2 | G 1/2" |
| E | 2 - 9 |
| Vgradna vrtina (E) | 34,5 - 35,5 |
Dodatne informacije:
| {{ $t('shop.all.gewicht') }} | 29 g / Kos |
| {{ $t('shop.all.gtin') }} | 4050571935658 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 39174000 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Slika
Več informacij o tem artiklu in možnostih naročanja najdete v naši spletni trgovini https://www.landefeld.de pod številko artikla DFB 34 IA PP.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Nemčija
Vse navedbe podatkov so nezavezujoče orientacijske vrednosti! Za izbiro podatkov, za katere ne izdamo pisnega potrdila, ne prevzemamo jamstev. Navedbe tlaka, v kolikor ni navedeno drugače, se nanašajo na tekočine skupine II. pri +20°C.
Naši izdelki in blago so na splošno namenjeni samo za industrijsko in komercialno uporabo.
Naši izdelki in blago so na splošno namenjeni samo za industrijsko in komercialno uporabo.
Stanje: 08.12.2025
