Data sheet

Resistance thermometer Pt100 (3-wire), G 1/2"x50mm
{{ $t('shop.all.artikelnummer') }}:
PT1003WC 126-50

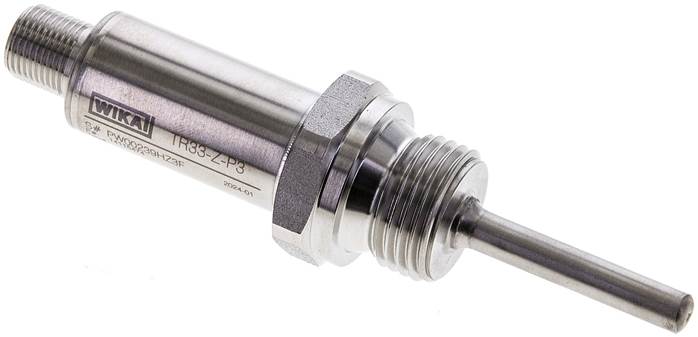

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Application:
For general applications in drive technology, hydraulics, mechanical engineering, plant engineering and tank construction.
Materials:
Body and wetted parts: 1.4571
Temperature range:
-40 to +85 °C (at the connector)
Measurement range:
-30 to +150 °C
Protection class:
IP 69 / IP 69K (with angled plug: IP 65)
Connection:
G 1/4" (with 6 mm protective tube) or G 1/2" (with 6 mm protective tube)
Operating pressure at the thermowell:
max. 270 bar
Measuring element:
1 x Pt100 (3-wire), class A in accordance with DIN EN IEC 60751
Electrical connection:
M 12 plug (A-coded, 4-pole) or angled plug DIN 43650 / EN 175301-803 A (size 3, 4-pole)
Note:
WIKA type TR33 (with M 12-plug) or type TR36 (with angled plug)
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Screw-in thread G 1/2"
Installation length (sensor including thread) [mm] 50
Electrical connection M12 connector, A-coded, 4-pole (DIN EN 61076-2-101) (plug)
Further information:
{{ $t('shop.all.gewicht') }} 170 g / pcs
{{ $t('shop.display.artikel.zollwarennummer') }} 90251900
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
{{ $t('shop.all.hersteller') }} WIKA (WEEE DE92770372)
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number PT1003WC 126-50.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 13.12.2025
