Data sheet

Resistance thermometer Pt100 (4-wire), G1/2"-6x150mm, without a neck pipe
{{ $t('shop.all.artikelnummer') }}:
PT1004AK 126-150

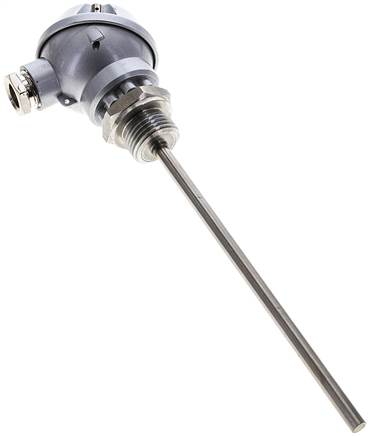

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Application:
For general use in mechanical engineering, heating and sanitary engineering, the food and beverage industry. Very well suited for low-cost temperature measurement in gases or liquids.
Materials:
Thread and protective pipe: 1.4571, connection head: Aluminium pressure casting
Temperature range:
-40 to +100 °C (at the connection head)
Measurement range:
-50 to +400 °C
Protection class:
IP 65
Connection:
G 1/2" (with 6 mm protective tube)
Operating pressure at the thermowell:
max. 40 bar
Measuring element:
1 x Pt100 (4-wire, but can also be used as 2-wire or 3-wire), class F 0.3 (class B) in accordance with DIN EN IEC 60751
Electrical connection:
Screw terminals, cable inlet: M 16x1,5
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Version without a neck pipe
Measuring element Pt100 (4-wire)
Installation length (sensor including thread) [mm] 150
Further information:
{{ $t('shop.all.gewicht') }} 175 g / pcs
{{ $t('shop.all.gtin') }} 4050571935795
{{ $t('shop.display.artikel.zollwarennummer') }} 90251900
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
Drawing:
Drawing: Resistance thermometer with small connection head, without neck tube
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.de under item number PT1004AK 126-150.
